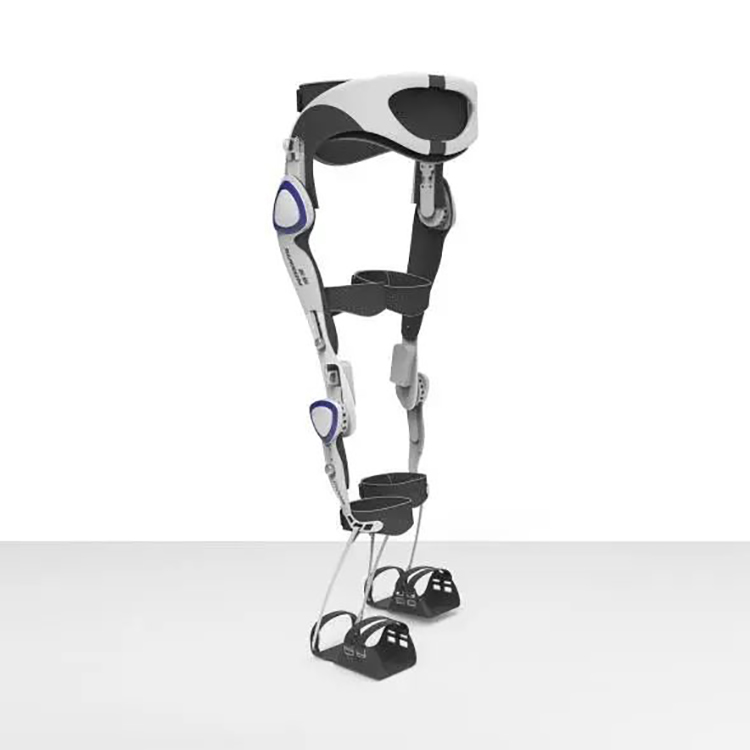

Passive Exoskeleton

This product is a wearable walking aid, which provides hip joint and knee joint auxiliary support for users with weak lower limb muscle strength, so as to reduce the energy consumed during walking and improve the quality of work and life. It does not need battery energy, uses its own energy cycle, stores it in the joint energy storage device, and converts it into joint power for walking.The product is not driven by a motor, thereby eliminating the sound generated by the operation of the motor and the discomfort caused by walking in a fixed mode, and maintaining the mental health of the user. Ergonomic design, suitable for a variety of indoor, outdoor, up and down stairs and other environments, almost unaffected by weather conditions.

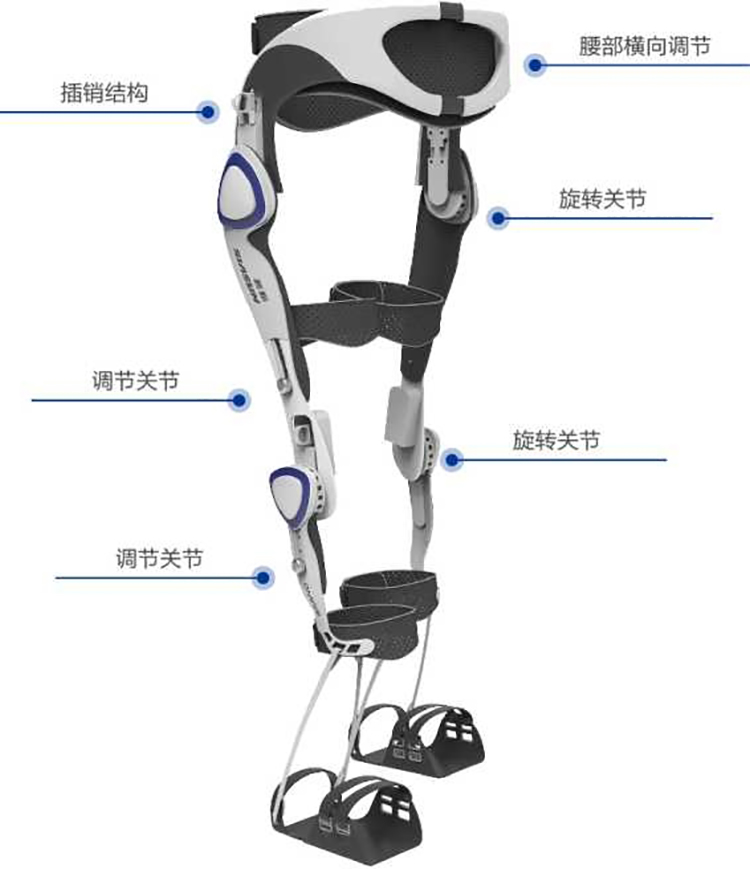

･ Bionic structure design, fit the physiological structure of human lower limbs, comfortable to use;

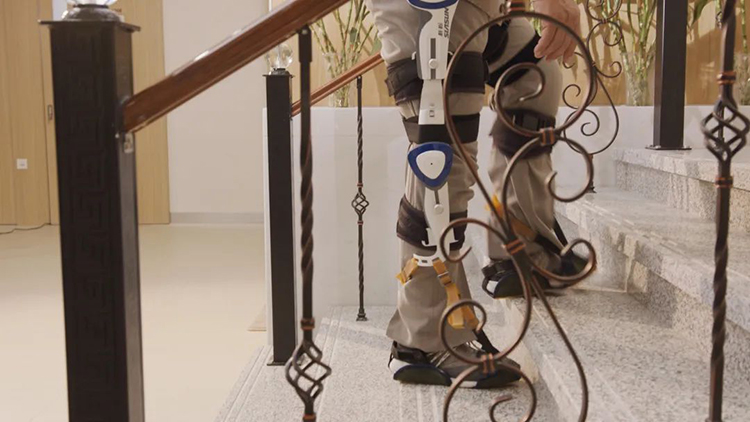

･ Lightweight design of each joint module, using rigid and flexible materials to form an integrated joint, reducing the user's wearing burden; ･ Users can selectively wear the joint module according to their own needs; ･ Five-point fixing design, with fixing points at the waist, the middle of the thigh and the middle of the calf, easy to wear, light and safe;No need for battery energy, abandon the battery and motor of the traditional exoskeleton robot, greatly reduce the weight of the product itself, and use the gravity of the human body to guide smooth and natural walking; ･ Users are encouraged to stimulate their walking ability and carry out walking ability training.

Parameter configuration

Applicable height 1500mm-1900mm Dead weight (power-assisted part) ≤2kg Extension of the waist 0mm-107mm Leg extension range Thigh 0-85mm Lower leg 0-20mm Adjustable power assistance Range of motion 0-4Nm Maximum climbing angle Unlimited Stair size Width ≥ 22 cm Height ≤ 20 cm Work Environment Indoor + outdoor (non-harsh outdoor environment) People with weak muscle strength who can walk independently
