Balance Training Robot

This is a rehabilitative training that including the active and passive movement of a person's lower and upper extremities. It has four training modes (Passive Training, Constant Speeding Training, Assisted Training and Active Training) and spasticity control function. The system can automatically complete the transformation of three modes: Passive Training, Assisted Training and Active Training according to patients' conditions during training. It is suitable for functional training such as muscle strength, muscle endurance, joint range of motion, balance and walking ability for patients in convalescence and sequelae. The equipment is divided into three types: upper and lower limb comprehensive type, single upper limb type and single lower limb type.

AIDOCTOR offers efficient solutions and services with robotic rehabilitation & intelligent aid& healthcare device for movement therapy!

Inquiry now

Description

Quick Details

use:: medical treatment

Place of Origin:: Shanghai, China

Brand Name:: AI Docotor

Model Number:: ZYS-ZNSXP-010

Material:: Stainless steel

Color:: White

MOQ:: 1

Packing:: 1set/carton box,then wooden carton

Carton Size:: 85*80*40

Feature:: Upper and lower limb rehabilitation training

Advantage:: Automatic intelligence

After-sales Service:: one-year free warranty and spare parts replacement

The weight of the:: 50KG

Custom service:: support

model	ZYS-ZNSXP-010
Material	Stainless steel
Advantage	Automatic intelligence, force feedback technology, biomechanical principles, personalized follow-up and analysis
After-sales Service	Lifelong online remote guidance operation and related training, one-year free warranty and spare parts replacement, irregular on-site inspection and testing
Keywords	Upper and lower balance training robot, intelligent balance training, intelligent upper and lower limb training instrument, upper and lower limb digital training system, automatic balance training system, hand and foot training instrument
Feature	Upper and lower limb rehabilitation training

Product Name:

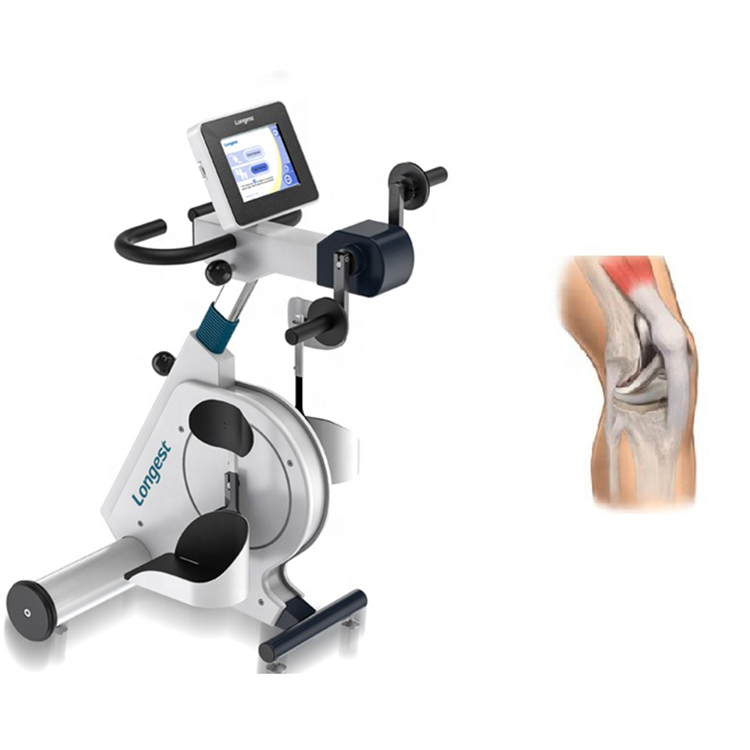

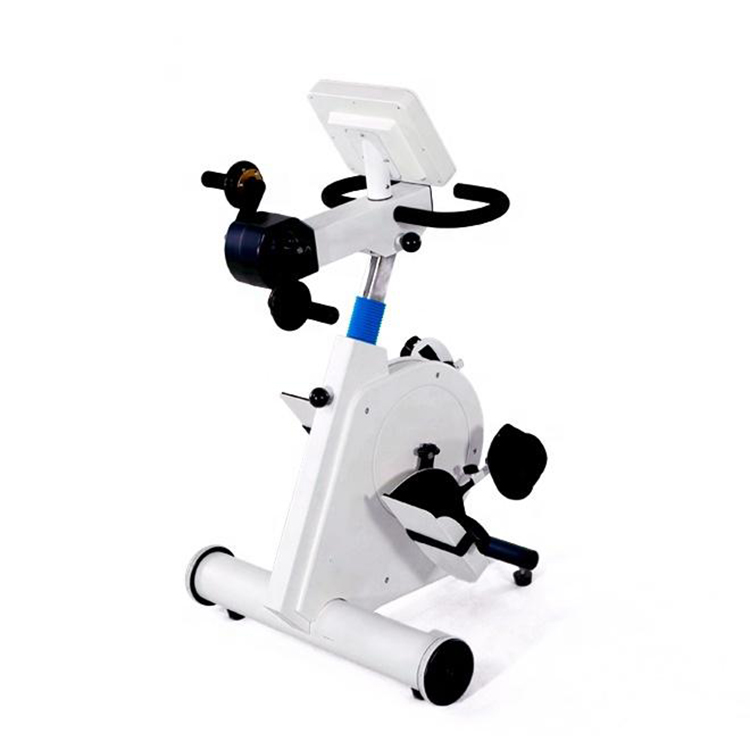

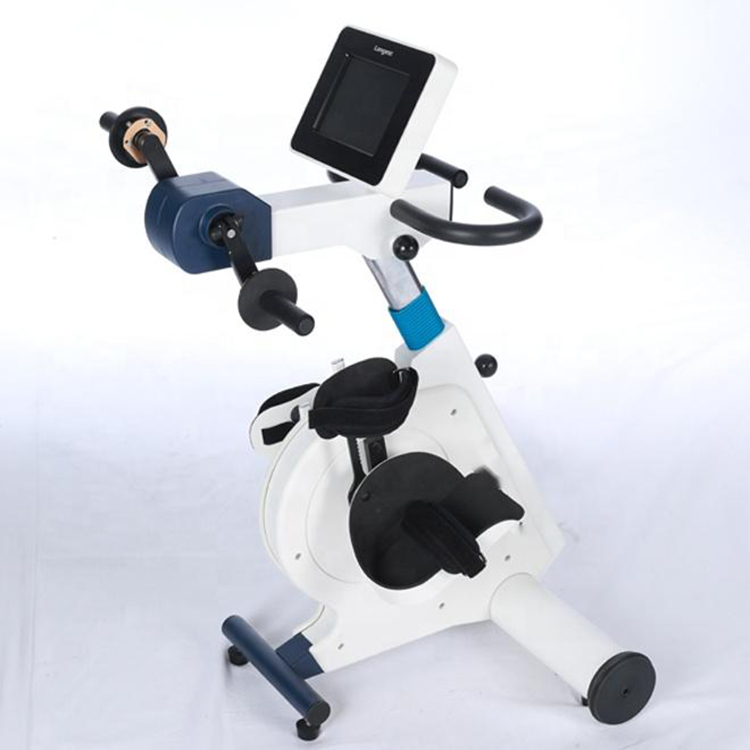

Intelligent Active and Passive Rehabilitation Machine for Adult Upper and Lower Limbs.

Product Description:

This is a rehabilitative training that including the active and passive movement of a person's lower and upper extremities. It has four training modes (Passive Training, Constant Speeding Training, Assisted Training and Active Training) and spasticity control function. The system can automatically complete the transformation of three modes: Passive Training, Assisted Training and Active Training according to patients' conditions during training. It is suitable for functional training such as muscle strength, muscle endurance, joint range of motion, balance and walking ability for patients in convalescence and sequelae. The equipment is divided into three types: upper and lower limb comprehensive type, single upper limb type and single lower limb type.

Clinic purpose:
Therapeutic and Rehabilitation
Suitable places:
Clinic and hospital
Intelligent upper and lower balance movement rehabilitation training system is a motor driven equipment under software control. It is mainly used for rehabilitation training of muscle strength and joint range of motion of upper and lower limbs for patients with limb disorders.
Configuration:

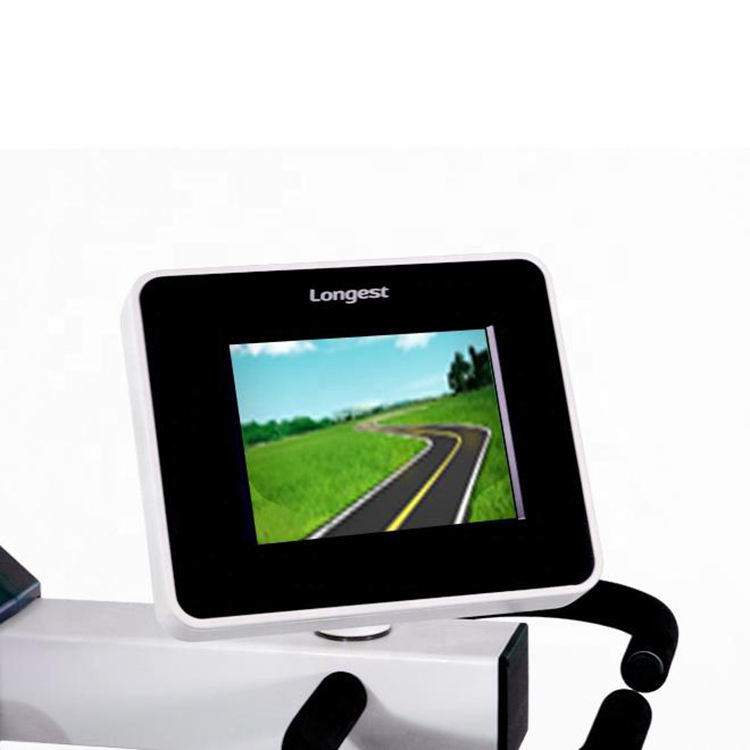

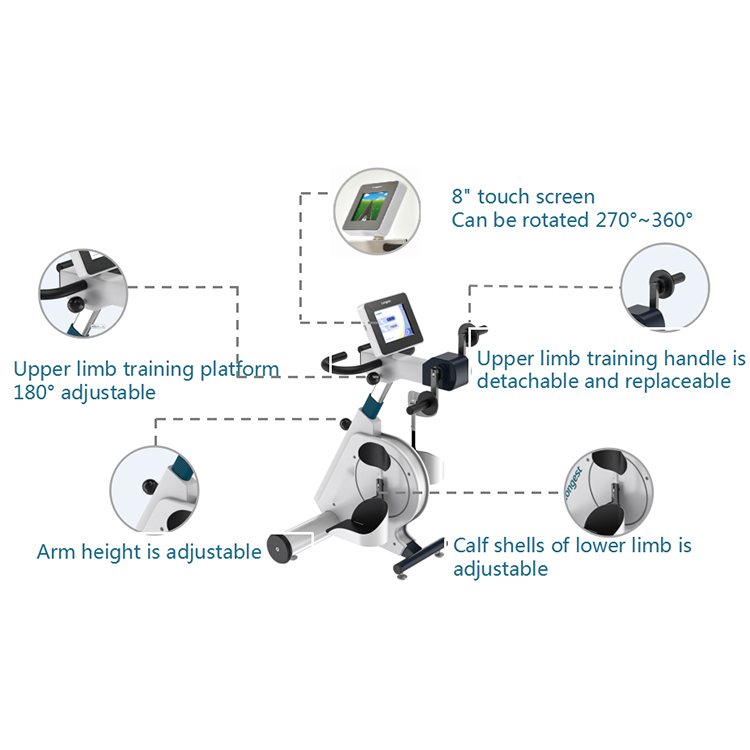

Technical Specification Width 710mm Length 760mm Height 1072mm Standard weight 59kg Power consumption 160VA Power supply AC 100-240v, 50-60Hz Rotate speed 5-60r/min(steps of 1r/min) Timer 1min-120min(steps of 1min) Operation type continuous Interface 8' touch screen Speed setting: During passive training, the upper limbs are set at 20-99 rpm.Lower limbs are set at 20-99 rpm LCD screen and buttons are convenient for muscle patients to operate. Anti-spasm function, when the patient is detected to have spasm, it will automatically reverse to relieve spasm.
Components:
1. One host machine of upper and lower limbs active and passive rehabilitation trainer
2. 1 power cord
3. Safety foot pedal 1 pair
4. Leg support bar 1 pair
5. 1 fixed flat sleeve
6. One Chinese manual
